Wedge Wire Screen

This kind of cylinder screen is fabricated into different diameters and slot openings.

Wedge wire screen is also known as looped wire screen with its wire arranging style.

It is mainly used as water well filter screen. Looped wedge wire screen is composed of rod strips and V shaped wires through manufacturing on specialized welding machine.

The rib strips and V shaped wires will be welded by resistance welding, has enough welding strength, equally slot gap, high corrosion resistance, large filter area, good permeability, simple structure

Basic Specifications-looped wedge wire screen

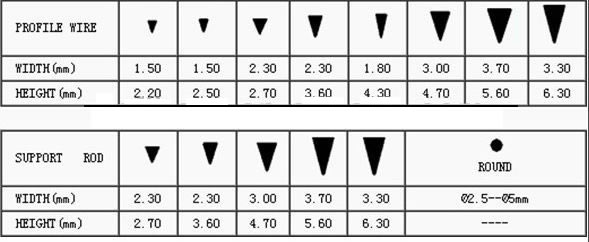

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.


galvanized low carton (LCG), stainless steel (304,316 etc.)


 up to 6 meters.


 from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

Product Characteristics-  looped wedge wire screen
1)The looped wedge wire screen is made up of rods and warp.
The rod can be round wire, triangular wire or trapezoid wire.
The warp is triangular wire (V-shaped wire).
2)  looped wedge wire screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

Product Application-  looped wedge wire screen
looped wedge wire screen  is a kind of filtered water tubing with the perforation .it can use with the deep well pump, dive the water pump, also in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, water softening treatment, the petroleum industry: The petroleum product terminal filters and so on the organic solution recycling filters.

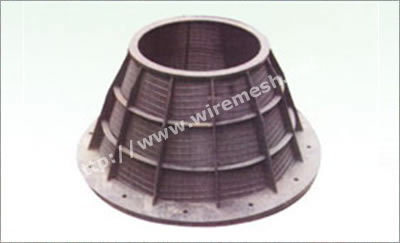

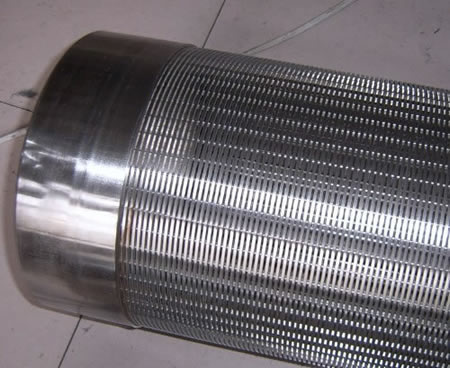

Looped Wedge Wire Screen, Stainless steel SUS 316L:Looped Wedge Wire Screen, Stainless steel SUS 316L
