Stainless Steel Wire Screen: Materials, Weaving Types, Production Steps and Specifications.
Materials and Weaving Types:
Arch stainless steel wire screen products are generally made of stainless steel Type 302, 304, 304L, 316, 316L, 321 and 430 etc. We produce wire screen and cloth in all kinds of forms. The weaving is determined according to our customers specific requirements, such as the material, the wire diameter, the size of the mesh , width and length.
SUS316 Square Hole Screen Fabric
Stainless Steel Wire Screen can be divided into plain weave stainless steel screen and stainless steel wire mesh twill weave.

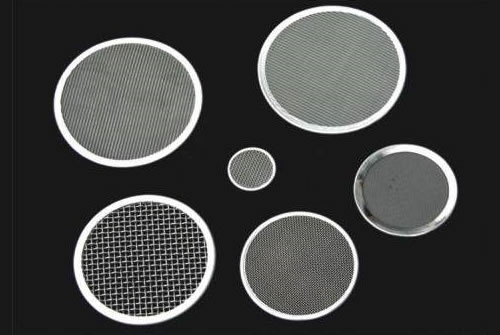

Stainless Mesh Screen Processed into Extruder Screen Discs for Chemical Fiber Melting Uses
General Eight steps for Stainless Steel Wire Screen production: From Wire Material to Finished Packed Screen Products.
1. Material Inspection
2. Warping
3. Head Hook
4. Reed Hook
5. Tested Mesh Count
6. Screen Weaving Process
7. Quality Inspection of the Wire Mesh Screen
8. Packing of SS Screen for Export
Why Choose Stainless Steel Material for Screen Manufacture?
Stainless steel is selected for their wear-resisting, heat-resisting, acid-resisting and corrosion resisting characteristics. Many different grades of stainless steel wire are used in screen cloth. T304 is the most common, but other are used in specific applications to take advantage of each grades unique properties. The wire mesh screen made of stainless steel is extensively used in mining, chemical industry, food industry and pharmaceutical industry.
Common Stainless Steel Screen Specifications for Industrial Uses:
| Stainless Steel Mesh Filter Screen |
| Mesh |
Wire Diameter (MM) |
Opening (MM) |
Material (AISI) |
| 2meshx2mesh |
1.80 |
10.90 |
302, 304 or 316 |
| 3meshx3mesh |
1.60 |
6.866 |
302, 304 or 316 |
| 4meshx4mesh |
1.20 |
5.15 |
302, 304 or 316 |
| 5meshx5mesh |
0.91 |
4.17 |
302, 304 or 316 |
| 6meshx6mesh |
0.80 |
3.433 |
302, 304 or 316 |
| 7meshx7mesh |
1.00 |
2.63 |
302, 304 or 316 |
| 10meshx10mesh |
0.60 |
1.94 |
302, 304 or 316 |
| 12meshx12mesh |
0.50 |
1.62 |
302, 304 or 316 |
| 16meshx16mesh |
0.40 |
1.19 |
302, 304 or 316 |
| 16meshx16mesh |
0.35 |
1.24 |
302, 304 or 316 |
| 18meshx18mesh |
0.35 |
1.06 |
302, 304 or 316 |
| 20meshx20mesh |
0.40 |
0.87 |
302, 304 or 316 |
| 24meshx24mesh |
0.26 |
0.80 |
302, 304 or 316 |
| 30meshx30mesh |
0.30 |
0.55 |
302, 304 or 316 |
| 35meshx35mesh |
0.17 |
0.56 |
302, 304 or 316 |
| 40meshx40mesh |
0.23 |
0.40 |
302, 304 or 316 |
| 50meshx50mesh |
0.20 |
0.31 |
302, 304 or 316 |
| 60meshx60mesh |
0.15 |
0.27 |
302, 304 or 316 |
| 70meshx70mesh |
0.12 |
0.24 |
302, 304 or 316 |
| 80meshx80mesh |
0.13 |
0.19 |
302, 304 or 316 |
| 90meshx90mesh |
0.12 |
0.16 |
302, 304 or 316 |
| 100meshx100mesh |
0.10 |
0.15 |
302, 304 or 316 |
| 120meshx120mesh |
0.09 |
0.12 |
302, 304 or 316 |
| 150meshx150mesh |
0.063 |
0.11 |
304 or 316 |
| 180meshx180mesh |
0.053 |
0.09 |
304 or 316 |
| 200meshx200mesh |
0.053 |
0.07 |
304 or 316 |
| 220meshx220mesh |
0.05 |
0.065 |
304 or 316 |
| 250meshx250mesh |
0.04 |
|
304 or 316 |
| Stainless Steel Woven Wire Mesh Screen (Plain Weave) |
| mesh/inch |
wire diameter
(mm) |
aperture
(mm) |
|
mesh/inch |
wire diameter
(mm) |
aperture
(mm) |
material |
| 2mesh |
1.8 |
10.9 |
60mesh |
0.15 |
0.273 |
304,
304L,
316,
316L |
| 3mesh |
1.6 |
6.866 |
70mesh |
0.14 |
0.223 |
| 4mesh |
1.2 |
5.15 |
80mesh |
0.12 |
0.198 |
| 5mesh |
0.91 |
4.17 |
90mesh |
0.11 |
0.172 |
| 6mesh |
0.8 |
3.433 |
100mesh |
0.1 |
0.154 |
| 8mesh |
0.6 |
2.575 |
120mesh |
0.08 |
0.132 |
| 10mesh |
0.55 |
1.99 |
140mesh |
0.07 |
0.111 |
| 12mesh |
0.5 |
1.616 |
150mesh |
0.065 |
0.104 |
| 14mesh |
0.45 |
1.362 |
160mesh |
0.06 |
0.094 |
| 16mesh |
0.4 |
1.188 |
180mesh |
0.053 |
0.088 |
| 18mesh |
0.35 |
1.06 |
200mesh |
0.053 |
0.074 |
| 20mesh |
0.3 |
0.97 |
250mesh |
0.04 |
0.061 |
| 26mesh |
0.28 |
0.696 |
300mesh |
0.035 |
0.049 |
| 30mesh |
0.25 |
0.596 |
325mesh |
0.03 |
0.048 |
| 40mesh |
0.21 |
0.425 |
350mesh |
0.03 |
0.042 |
|
