Excellent corrosion resistance because of Nickel Content. Better heating property than common Stainless Steel material. Suitable for Work Conditions with High Heating and Corrosion resistance Demand. Monel 400 and Monel K-500 Wire Mesh as Popular Type, with Detailed Introduction.
 |

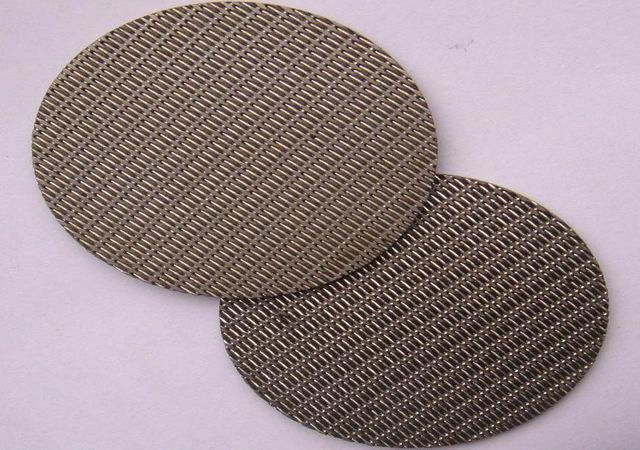

| Nickel-Copper Alloy (Monel) Mesh Processed Disc Screen |
| |
|
 |
 |

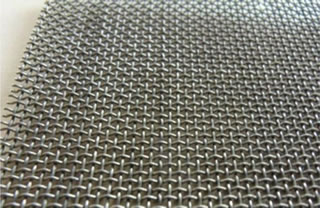

| Monel 400 Series Wire Mesh, 1/4 in x 1/4 in, wire 0.057 inch |

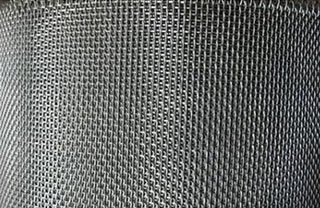

Monel K 500 Series Wire Mesh Suitable for Sour Gas Filtering |
| |
|

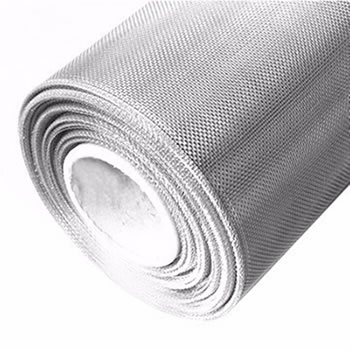

General Introduction:
Monel wire mesh is a kind of alloy woven wire filter mesh. The monel alloy is also known as Nickel-copper alloy material as its main chemical components are nickel and copper. Monel series material series include Monel400,Monel401, Monel404, MonelR405 and Monel K-500. The most popular monel mesh is made of Monel 400 or Monel K-500.
Monel wire mesh has 60% up of nickel content which offers intense resistance to the variety of corrosion conditions such as resistance to brackish water, steam, salt and caustic solutions. Also, the melting point of Monel material is 1300 to 1350 and this enables Monel wire mesh products suitable for high temperature working conditions. So, Monel wire mesh is often used in research and development of petroleum and ocean exploring activities.
Comparing with common Stainless Steel Wire Mesh, Monel wire mesh offers better heating property and finds more uses in various heat exchange devices, heating facilities for boilers, etc.
 |
| Technical Info from Arch |
Material: Nickel based copper alloy, containing minimum 63% Nickel and 28% Copper.
Grade: Monel 400 and k500
Melting Point: 1300 degree-1350 degree
Mesh Counts: from 1-200mesh/inch
Micron Size:10-1000microns
Wire Diameter: 0.025-2.03mm
Weaving: Plain weave, twill weave, dutch weave.
Mesh Roll: 1x30m, 2x30m, 1.524x30m, 0.914x30m.
Mesh Surface: Flat and smooth
Hole Shape: Square |
|
Features and Application: Monel mesh cloth offers corrosion resistance, acid resistance, alkali resistance, temperature resistance and high strength. Hence it is mainly used for sea water evnironments, acid and alkali conditions, also heating filtration as filter disc, filter cylinders.
Chemical Composition List of Monel 400 and Monel K500
| Material |
C |
Mn |
Si |
S |
Ni |
Cu |
Fe |
| Monel 400 |
≤0.30 |
≤2.00 |
≤0.50 |
≤0.024 |
≥63 |
28.0~34.0 |
≤2.5 |
| Material |
C |
Mn |
Si |
S |
Ni |
Cu |
Ti |
Al |
Fe |
| Monel K500 |
≤0.25 |
≤1.50 |
≤0.50 |
≤0.010 |
≥63 |
27.0
~33.0 |
0.35
~0.85 |
2.30
~3.15 |
≤2.0 |
| Monel 400 Alloy Wire Mesh Technical Details: Both Chemical and Physical |
| Chemical Components |
Physical Property |
| Components |
Content % |
Density |
8.91g/cm3 |
| Nickel |
63.0 |
Electric Resistance |
4.98e-005 ohm-cm |
| Copper |
28.0min-34.0max |
Heating |
0.414 J/g-°C |
| Iron |
2.5max |
Heating Conducting |
21 W/m-°C |
| Manganese |
2.0max |
Magnetic |
1.0047(AT 78 0F) |
| Carbon |
0.3max |
Coefficient of thermal expansion |
| Silicon |
0.5max |
70-200F |
7.4 |
| Aluminum |
0.05max |
70 - 500 F |
8.5 |
| Sulfur |
0.024max |
70 - 1000 F |
9.2 |
| Main Specifications of Monel Woven Wire Mesh |
| Mesh/Inch |
Wire Diameter mm |
Aperture
mm |
- |
Mesh/Inch |
Wire Diameter
mm |
Aperture
mm |
| 2 mesh |
1.8 |
10.9 |
40 mesh |
0.21 |
0.425 |
| 3 mesh |
1.6 |
6.866 |
50 mesh |
0.19 |
0.318 |
| 4 mesh |
1.2 |
5.15 |
60 mesh |
0.15 |
0.273 |
| 5 mesh |
0.91 |
4.17 |
70 mesh |
0.14 |
0.223 |
| 6 mesh |
0.8 |
3.433 |
80 mesh |
0.12 |
0.198 |
| 8 mesh |
0.6 |
2.575 |
90 mesh |
0.11 |
0.172 |
| 10 mesh |
0.55 |
1.99 |
100 mesh |
0.1 |
0.154 |
| 12 mesh |
0.5 |
1.616 |
120 mesh |
0.08 |
0.132 |
| 14 mesh |
0.45 |
1.362 |
140 mesh |
0.07 |
0.111 |
| 16 mesh |
0.4 |
1.188 |
150 mesh |
0.065 |
0.104 |
| 18 mesh |
0.35 |
1.06 |
160 mesh |
0.065 |
0.094 |
| 20 mesh |
0.3 |
0.97 |
180 mesh |
0.053 |
0.088 |
| 26 mesh |
0.28 |
0.696 |
200 mesh |
0.053 |
0.074 |
| 30 mesh |
0.25 |
0.596 |
|
|
|
Monel 400 Woven Wire Mesh
Monel 400 Wire Mesh significantly resists de-aerated hydrochloric acid and hydrofluoric acids. It provides broad resistance to stress corrosion cracking in the fresh water and other corrosion conditions. It shows intense mechanical features at the subzero temperatures and firmness and toughness. It doesn't exhibit ductile to brittle transformation when quenched to fluid hydrogen temperature level.
Monel K 500 Woven Wire Mesh
Monel K500 Wire Mesh offers excellent resistance to corrosion as well as large strength and hardness. The strength of this alloy is retained up to 1200oF however it shows ductility and toughness up to 400oF. It has very high melting temperature of 2400oF to 2460oF.
Benefits of Using Monel K500 compared with Monel 400 Wire Mesh:
The Monel K500 alloy has almost three times higher yield strength and tensile strength as compare to Monel 400 mesh. In the age toughened form, it has larger competency against the stress corrosion cracking and offers more resistance to sour gas conditions.
Manufacture's Advices to Monel K500 alloy Mesh:
The alloy shows non magnetic features and spark resistance up to 200oF but it is possible to produce the magnetic layer on the alloy's surface while processing. The copper and aluminum elements are specifically oxidized during heating that produce the magnetic nickel layer outside the alloy surface. The magnetic properties can be removed by pickling.
Coarse Opening Monel Wire Mesh Description Examples:
1. Monel mesh:3 ft wd x 100 ft lg, mesh size 1/4 in x 1/4 in, dia wire 0.057 in:
Item specifications:
Woven wire mesh,metallic,no mod
Material: monel
Mesh size: 1/4" x 1/4" in
Roll size: width 3 ft x 100 ft x 17 swg
Strand size/wire diameter: 0.057 inch
Type: wire netting
Additional information: shape apperture: square
Monel wire mesh, minimum width 3 feet, (in roll of 100 feet
1/4" x 1/4"mesh, 17 swg wire gauge
2. Monel woven wire mesh:3 ft width x 100 ft length, mesh size 4 x 4,dia wire 0.047 in
item specifications:
Wire mesh,metallic,no mod,
Material: Monel
Mesh size: 4 x 4 per in
Roll size: width 3 x 100 ft
Strand size/wire diameter: 0.047 inch
Type: wire netting
Additional information:
Shape of aperture: square
Mesh per inch linear: 4 x 4
Filter Grade Monel Wire Cloth:
Monel wire cloth, 36'' roll wide, 60''roll length,
100 mesh X 0.0045'' wire diameter.
Woven monel wire cloth, filtration rating: 10µm. |
