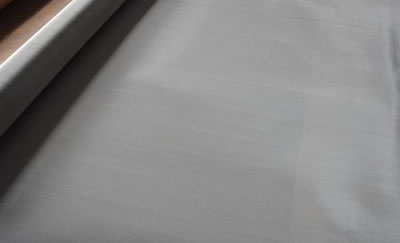

Inconel Alloy Wire Mesh
Inconel alloy woven wire is made with nickel-chromium-iron base alloy material. This special wire mesh offers good heat resistance, corrosion resistance, oxygen resistance, good cold and heat processing and welding property. Inconel wire mesh has satisfying heating strength and high elasticity under 700 centigrade. |
 |
| Inconel Alloy Series wire mesh can be made of the following materials |
Inconel 230 (N06230), Inconel 600 (N06600), Inconel 601 (N06601), Inconel 617 (N06617), Inconel 625 (N06625), Inconel 690 (N06690), Inconel 706, Inconel 718 (N07718), Inconel X-750 (N07750) and Inconel 751 (N07751).
Among them, the Inconel 600 (N06600) wire mesh is the most popular type. |
|
Model:
By
Inconel 600 grade wire mesh has the following features:
a, Very good oxygen resisting and heat resisting;
b, Very good corrosion resistance and breaking resistance under common or high temperature condition;
c, Very good mechanical property under low or high temperature;
d, Good control of carbon content and crystal particle.
e, Recommended for application at work condition with temperature of more than 700 centigrade.
Inconel 600 wire mesh application:
Polymer production;
Alkaline metal production;
Petroleum and chemical industry.
| Technical Info from Arch |
Major Material: Inconel 600, Inconel 601, Inconel 625, Inconel 718 (N07718), Inconel X-750
Mesh Count: 2-200 mesh
Weaving: Plain Weave & Twill Weave
Hole Pattern: Square |
Materials Chemical Compostion
| Grade |
C |
Cr |
Cu |
Fe |
Mn |
Ni |
S |
Si |
| Inconel 600 |
0.15 |
14 - 17 |
0.5 |
6 - 10 |
1.0 |
72.0 |
0.015 |
0.5 |
| Grade |
C |
Cr |
Cu |
Fe |
Mn |
Ni |
S |
Si |
Al |
| Inconel 601 |
0.1 |
21 - 25 |
1.0 |
Rem |
1.0 |
58 - 63 |
0.015 |
0.5 |
1.0 - 1.7 |
| Grade |
C |
Cr |
Fe |
Mn |
Ni |
S |
Si |
Al |
Cb |
Mo |
P |
Ti |
| Inconel 625 |
0.1 |
20 - 23 |
5.0 |
0.5 |
Rem |
0.15 |
0.5 |
0.4 |
3.15 - 4.15 |
8 - 10 |
0.015 |
0.4 |
| Grade |
C |
Cr |
Cu |
Fe |
Mn |
Ni |
S |
Si |
Al |
Cb |
Mo |
P |
Ti |
B |
C |
Co |
| Inconel 718 |
0.08 |
17-21 |
0.3 |
Rem |
0.035 |
50 - 55 |
0.015 |
0.35 |
0.2 - 0.8 |
4.75- 5.50 |
2.8 - 3.3 |
0.015 |
0.65- 1.15 |
0.006 |
0.08 |
1.0 |
| Grade |
C |
Cr |
Cu |
Fe |
Mn |
Ni |
S |
Si |
Al |
Cb |
Ti |
| Inconel 750 |
0.08 |
14 –17 |
0.5 |
5 – 9 |
1 |
70 |
0.01 |
0.5 |
0.4 – 1 |
0.7 – 1.2 |
2.0 – 2.6 |
|
|
|
