Polyester Screen Printing Mesh

Polyester mesh is commonly used as silk printing fabric, also used as filter bolting cloth. This is a material that is uniquely suitable for screen printing because of its tensile strength, elastic memory and resistance to chemicals, abrasion heat and moisture.

Mesh count goes from 15mesh/inch to 420mesh/inch.

Basic Information of Polyester Mesh for Printing Fabrics:
Material: 100% polyester
Color: White,yellow,black
Polyester Mesh Roll width:0.3m-3.9m,custom require available at request
Standard roll length:25m,30m,50m.custom require available at request
Packing: The polyester mesh is packed in pvc bag and cartons, custom packing available at request.
Uses: Printing, filtering
With imported high quality material, advanced weaving looms and instruments and technicians well trained by Swiss experts, we supply you first class polyester and nylon wire mesh products.
Polyester mesh screen are widely used in filtering, textile, printing and dyeing, printing plate, electronic printing, PVC printing, glass printing, ceramic printing and other industries.

Polyester Mesh Screen Features:
1.High durability and best tensility: all threads are the best domestic or imported.
2.Nice appearance, standard size: all are imported worldly advanced production lines.
3.Good stability and fine printing effect.
4.Excellent capability for rubbing.
5.Good surface stretching capability

Polyester Mesh in Yellow Colors Polyester Mesh for Various Printing Uses

Wire Mesh Looms Workshops for Polyester Screen Manufacture

Polyester Mesh Specifications:

Specification(cm) Mesh Count (mesh/inch) Wire Dia. (um) Mesh opening (um) Open Area(%) Suggestion Highest Tension N/cm
8T 20 350 900 52 66
10T 25 300 700 49 61
12T 30 250 580 48 58
15T 38 200 467 49 58
24T 60 120 297 51 52
32T 80 100 213 46 54
40T 100 80 170 46 37
43T 110 80 153 43 35
53T 135 64 125 44 40
56T 142 64 115 41 41
61T 156 64 100 37 41
64T 160 64 92 35 42
68T 175 64 83 32 40
72T 183 55 84 37 38
77T 195 55 75 33 33
80T 200 48 77 38 34
90T 230 45 72 42 30
100T 250 40 61 37 32
110T 280 40 52 33 34
120T 300 34 47 32 34
140T 350 34 37 24 33
150T 380 31 34 26 31
165T 420 31 25 17 31

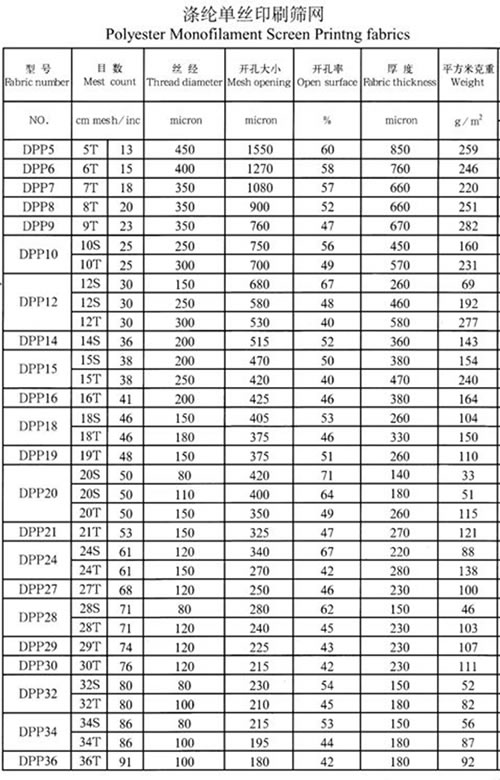

Specification of Polyester Monofilament Screen Printing Mesh Fabric, with Model No, Mesh Count, Thread Diameter, Mesh Opening, Open Rating, Thickness and Unit Weight
